本文是继上篇webpack3项目升级webpack4实践的第二篇，本着循序渐进的原则，对老项目一步步升级。

老规矩，先复制一份原始依赖。如下：

    "dependencies": {
        "@xkeshi/vue-qrcode": "^1.0.0",
        "axios": "^0.19.0",
        "blueimp-md5": "^2.12.0",
        "china-area-data": "^5.0.1",
        "easemob-websdk": "^3.6.3",
        "echarts": "^4.6.0",
        "el-tree-transfer": "^2.3.0",
        "element-china-area-data": "^5.0.0",
        "element-ui": "^2.12.0",
        "file-saver": "^2.0.2",
        "html2canvas": "^1.0.0-rc.5",
        "js-cookie": "^2.2.1",
        "jsbarcode": "^3.11.0",
        "jwt-js": "^0.5.0",
        "normalize.css": "^8.0.1",
        "nprogress": "^0.2.0",
        "throttle-debounce": "^2.1.0",
        "v-charts": "^1.19.0",
        "v-distpicker": "^1.2.2",
        "vant": "^2.12.19",
        "vue": "^2.5.2",
        "vue-amap": "^0.5.10",
        "vue-clipboard2": "^0.3.1",
        "vue-drag-resize": "^1.3.2",
        "vue-quill-editor": "^3.0.6",
        "vue-router": "^3.0.1",
        "vuedraggable": "^2.24.0",
        "vuex": "^3.1.1",
        "xlsx": "^0.15.6"
    },
    "devDependencies": {
        "@babel/core": "^7.7.5",
        "@babel/plugin-transform-runtime": "^7.7.6",
        "@babel/polyfill": "^7.7.0",
        "@babel/preset-env": "^7.7.6",
        "@babel/runtime": "^7.7.6",
        "autoprefixer": "^7.1.2",
        "babel-eslint": "^10.0.3",
        "babel-helper-vue-jsx-merge-props": "^2.0.3",
        "babel-loader": "^8.0.6",
        "babel-plugin-syntax-jsx": "^6.18.0",
        "babel-plugin-transform-vue-jsx": "^3.7.0",
        "body-parser": "^1.19.0",
        "chalk": "^2.0.1",
        "chokidar": "^3.2.2",
        "concurrently": "^5.0.0",
        "copy-webpack-plugin": "^6.4.1",
        "core-js": "^2.6.11",
        "css-loader": "^5.2.7",
        "el-tree-transfer": "^2.3.0",
        "eslint": "^4.15.0",
        "eslint-config-standard": "^10.2.1",
        "eslint-friendly-formatter": "^3.0.0",
        "eslint-loader": "^1.7.1",
        "eslint-plugin-import": "^2.7.0",
        "eslint-plugin-node": "^5.2.0",
        "eslint-plugin-promise": "^3.4.0",
        "eslint-plugin-standard": "^3.0.1",
        "eslint-plugin-vue": "^4.0.0",
        "execa": "^5.0.0",
        "express": "^4.17.1",
        "file-loader": "^1.1.4",
        "friendly-errors-webpack-plugin": "^1.6.1",
        "html-webpack-plugin": "^4.4.0",
        "http-proxy-middleware": "^0.20.0",
        "http-server": "^0.11.1",
        "inquirer": "^7.3.3",
        "mini-css-extract-plugin": "^1.6.2",
        "node-notifier": "^5.1.2",
        "node-sass": "^4.12.0",
        "optimize-css-assets-webpack-plugin": "^3.2.0",
        "ora": "^1.2.0",
        "os": "^0.1.1",
        "portfinder": "^1.0.13",
        "postcss-import": "^11.0.0",
        "postcss-loader": "^2.0.8",
        "postcss-url": "^7.2.1",
        "rimraf": "^2.6.0",
        "sass-loader": "^7.3.1",
        "semver": "^5.3.0",
        "shelljs": "^0.7.6",
        "socket.io": "^3.0.4",
        "terser-webpack-plugin": "^4.2.3",
        "thread-loader": "^2.1.3",
        "uglifyjs-webpack-plugin": "^1.1.1",
        "url-loader": "^4.1.1",
        "vue-loader": "^15.9.8",
        "vue-style-loader": "^4.1.3",
        "vue-template-compiler": "^2.6.14",
        "webpack": "^4.46.0",
        "webpack-bundle-analyzer": "^2.9.0",
        "webpack-cli": "^3.3.12",
        "webpack-dev-server": "^3.11.3",
        "webpack-merge": "^4.1.0"
    },

本次升级主要升级webpack，并附带升级相关webpack插件。

过程

先调试开发。

        "dev": "webpack-dev-server --inline --progress --config build/webpack.dev.conf.js --env.pageName",

升级webpack5

npm i webpack@5 webpack-cli@4 -D

运行报错，如下

internal/modules/cjs/loader.js:892
  throw err;
  ^

Error: Cannot find module 'webpack-cli/bin/config-yargs'
Require stack:
- F:\h5\node_modules\webpack-dev-server\bin\webpack-dev-server.js

是webpack-dev-server版本偏低

升级webpack-dev-server

 npm i webpack-dev-server@4 -D

报错，如下

[webpack-cli] Error: Unknown option '--inline'
[webpack-cli] Run 'webpack --help' to see available commands and options
npm ERR! code ELIFECYCLE
npm ERR! errno 2
npm ERR! s2b2c@1.0.0 dev: `webpack-dev-server --inline --progress --config build/webpack.dev.conf.js --env.pageName "goodsCenter"`
npm ERR! Exit status 2

是因为新版本的webpack-dev-server不支持--inline参数，去除。

运行报错，如下

[webpack-cli] Error: Unknown option '--env.pageName'
[webpack-cli] Run 'webpack --help' to see available commands and options
npm ERR! code ELIFECYCLE
npm ERR! errno 2
npm ERR! s2b2c@1.0.0 dev: `webpack-dev-server --progress --config build/webpack.dev.conf.js --env.pageName "goodsCenter"`
npm ERR! Exit status 2

参考github文档 (opens new window)，发现webpack5不支持用户传入自定义参数了，不过依旧支持给env对象增加属性（见webpack文档 (opens new window)）。这句话可能有点难理解，以当前项目为例：

1. 项目开发命令为npm run dev goodsCenter，只编译goodsCenter页面。

2. 原webpack config文件可以通过env.pageName来获取goodsCenter的值

3. webpack5对于--env的写法有变，它支持的写法如下

   webpack serve --env pageName=goodsCenter


   但这里有个问题，就是goodsCenter实际是开发者作为命令行参数输入的，而webpack这里必须固定设置。

解决方案是使用node命令行参数，作为中转。

1. 更改dev命令

           "dev": "node build/dev.js",


2. 中转dev.js

   // build/dev.js
   const chalk = require('chalk')
   const cp = require('child_process')

   async function run() {

       const cliParams = process.argv.slice(2)

       if (cliParams.length > 2) {
           console.log(chalk.yellow('仅支持传入一个页面参数，多余页面会被忽略'))
       }

       const page = cliParams[0] || ''

       const pageParam = page ? `--env pageName=${page}` : ''
       const command = `webpack serve --config build/webpack.dev.conf.js --color ${pageParam}`

       const child = cp.exec(command)
       child.stdout.pipe(process.stdout) // 输出子进程信息
       child.stderr.pipe(process.stderr)
   }

   run()



done，原有处理pageName的逻辑不需要改变。

处理报错

继续运行，报错。

[webpack-cli] Invalid configuration object. Webpack has been initialized using a configuration object that does not match the API schema.
 - configuration.devtool should match pattern "^(inline-|hidden-|eval-)?(nosources-)?(cheap-(module-)?)?source-map$".
   BREAKING CHANGE since webpack 5: The devtool option is more strict.
   Please strictly follow the order of the keywords in the pattern.

之前的devtool如下

devtool: 'cheap-module-eval-source-map',

改写为

devtool: 'eval-cheap-module-source-map',

继续运行，报错。

[webpack-cli] Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'watchOptions'.

提示watchOptions已废弃，去除。

			// watchOptions: {
            //     poll: config.dev.poll
            // }

继续运行，报错。

[webpack-cli] Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'quiet'.

提示quiet属性已废弃，去除。

// quiet: true // necessary for FriendlyErrorsPlugin

继续运行，报错。

[webpack-cli] Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'publicPath'.

提示publicPath已废弃，改写之，文档-publicPath (opens new window)。

// 之前
        devServer: {
			publicPath: config.dev.assetsPublicPath
        }

// 之后
        devServer: {
            static: {
                publicPath: config.dev.assetsPublicPath
            },
        }

继续运行，报错。

[webpack-cli] Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'overlay'.

提示overlay属性不存在，根据文档-overlay (opens new window)修改。

// 之前
        devServer: {
				overlay: {
                    warnings: false,
                    errors: true
                }
        }

// 之后
        devServer: {
            client: {
                overlay: {
                    warnings: false,
                    errors: true
                }
            },
        }

继续运行，报错。

Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'contentBase'.

webpack5修改了字段。

// 之前
        devServer: {
            contentBase: path.resolve(__dirname, '../client'),
        }

// 之后
        devServer: {
            directory: path.resolve(__dirname, '../client'),
        }

继续运行，报错。

Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'clientLogLevel'.

webpack5已删除该属性，去除。

继续运行，报错。

[webpack-cli] Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options has an unknown property 'disableHostCheck'.

webpack5修改了字段。

// 之前
        devServer: {
            disableHostCheck: true,
        }

// 之后
        devServer: {
            allowedHosts: 'all',
        }

好的，没报错了，项目正常启动。

打包

开发过程正常，接下来是构建部署包过程。

运行npm run build，报错

h5\build\webpack.prod.conf.js:136
            new webpack.HashedModuleIdsPlugin(),
            ^

TypeError: webpack.HashedModuleIdsPlugin is not a constructor

参考文档：hashed-module-ids-plugin (opens new window)，改为

new webpack.ids.HashedModuleIdsPlugin(),

插一句，官网不推荐使用这种方式，移除最好，见文档 (opens new window)。

继续运行，又报错

h5\build\build-all.js:35
        if (err) throw err
                 ^

TypeError: compiler.plugin is not a function
    at LastCallWebpackPlugin.apply (F:\h5\node_modules\last-call-webpack-plugin\index.js:190:12)
    at OptimizeCssAssetsPlugin.apply (F:\h5\node_modules\optimize-css-assets-webpack-plugin\index.js:73:32)
    at createCompiler (F:\h5\node_modules\webpack\lib\webpack.js:73:12)
    at create (F:\h5\node_modules\webpack\lib\webpack.js:134:16)
    at webpack (F:\h5\node_modules\webpack\lib\webpack.js:142:47)
    at f (F:\h5\node_modules\webpack\lib\index.js:55:16)
    at buildPage (F:\h5\build\build-all.js:33:5)
    at F:\h5\build\build-all.js:22:9
    at Array.forEach (<anonymous>)
    at F:\h5\build\build-all.js:21:14
    at next (F:\h5\node_modules\rimraf\rimraf.js:83:7)
    at CB (F:\h5\node_modules\rimraf\rimraf.js:119:9)
    at F:\h5\node_modules\rimraf\rimraf.js:145:14
    at FSReqCallback.oncomplete (fs.js:192:21)

因为optimize-css-assets-webpack-plugin插件已过时（参考文档 (opens new window)），webpack5使用css-minimizer-webpack-plugin替代。

安装插件npm i ss -D，运行，报错。

xx/css/776.0442ce6947f070cf7f1f.css from Css Minimizer
Error: [object Object] is not a PostCSS plugin
    at Processor.normalize (F:\h5\node_modules\postcss\lib\processor.js:145:15)
    at new Processor (F:\h5\node_modules\postcss\lib\processor.js:51:25)
    at postcss (F:\h5\node_modules\postcss\lib\postcss.js:73:10)
    at cssnanoPlugin (F:\h5\node_modules\cssnano\src\index.js:156:10)
    at cssnanoMinify (eval at transform (F:\h5\node_modules\css-minimizer-webpack-plugin\dist\minify.js:34:28), <anonymous>:51:33)
    at minify (F:\h5\node_modules\css-minimizer-webpack-plugin\dist\minify.js:15:32)
    at Object.transform (F:\h5\node_modules\css-minimizer-webpack-plugin\dist\minify.js:35:24)
    at execFunction (F:\h5\node_modules\jest-worker\build\workers\threadChild.js:158:17)
    at execHelper (F:\h5\node_modules\jest-worker\build\workers\threadChild.js:137:5)
    at execMethod (F:\h5\node_modules\jest-worker\build\workers\threadChild.js:141:5)

见issue (opens new window)，需要重新安装postcss。

npm i postcss -D

升级依赖

• 升级html-webpack-plugin

  npm i html-webpack-plugin@5


• 升级mini-css-extract-plugin

  npm i mini-css-extract-plugin@2


• 升级thread-loader

  npm i thread-loader@3


• 升级copy-webpack-plugin

  npm i copy-webpack-plugin@10


• 升级css-loader

  npm i css-loader@6


• 升级file-loader

  npm i file-loader@6


其他问题

端口占用

F:\h5\node_modules\webpack-dev-server\lib\Server.js:1751
      throw error;
      ^

Error: listen EADDRINUSE: address already in use 0.0.0.0:8088
    at Server.setupListenHandle [as _listen2] (net.js:1320:16)
    at listenInCluster (net.js:1368:12)
    at doListen (net.js:1505:7)
    at processTicksAndRejections (internal/process/task_queues.js:83:21) {
  errno: -4091,
  syscall: 'listen',
  address: '0.0.0.0',
  port: 8088
}

查找开启服务的端口

netstat -ano|findstr 8088

发现的确存在

  TCP    0.0.0.0:8088           0.0.0.0:0              LISTENING       2968
  TCP    127.0.0.1:8088         127.0.0.1:52191        ESTABLISHED     2968
  TCP    127.0.0.1:52191        127.0.0.1:8088         ESTABLISHED     13156
  TCP    127.0.0.1:52222        127.0.0.1:8088         TIME_WAIT       0

干掉它，即可。

tskill 2968

字体文件损坏（css-loader@6）

部署后，发现element-ui的字体图标失效，控制台报警告错误：

Failed to decode downloaded font: https://example.com/d3cc9e4763d2a7c851ef.woff

查找对应的打包文件，发现这个woff文件里面是js代码。

export default __webpack_public_path__ + "element-ui/fonts/element-icons.313f7da.woff";

明显是打包错了。

查看提交记录，发现是升级了css-loader（v5.2.7->v6.6.0）导致，于是去github查询issue。

相关issue有1338 (opens new window)，1360 (opens new window)，作者对于webpack5 做了 breaking change，建议开发者使用资源模块 (opens new window)来加载资源，并废弃raw-loader,url-loader,file-loader。前后对比如下：

之前

{
    test: /\.(woff2?|eot|ttf|otf)(\?.*)?$/,
    loader: 'url-loader',
    options: {
        limit: 10000,
        name: path.posix.join('element-ui/fonts/[name].[hash:7].[ext]')
    }
}

之后

{
    test: /\.(woff2?|eot|ttf|otf)(\?.*)?$/,
    type: 'asset',
    generator: {
        filename: path.posix.join('element-ui/fonts/[name].[hash:7].[ext]')
    }
}

注：options选项是作为参数传入loader的，采用asset-modules后，就不需要了，webpack默认小于8kb就会使用Base64编码字符串注入，可以修改maxSize。

整理webpack控制台信息

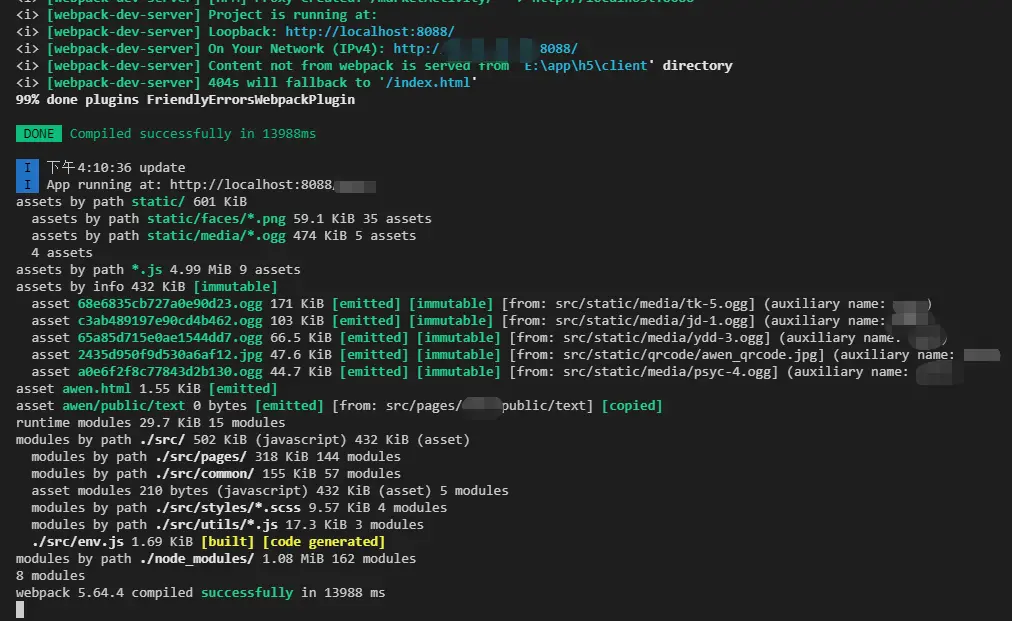

正常情况下，webpack构建时会输出一大堆信息，如下：

多余的信息会让开发者变得焦躁，清理方式很简单：

module.export = {
    infrastructureLogging: {
        // 禁用日志
        // https://webpack.docschina.org/configuration/other-options/#level
        level: 'none'
    },
    stats: 'errors-only' // 编译错误时输出
}

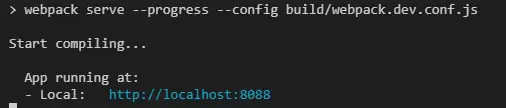

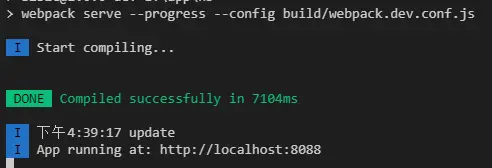

不过，顺利的话是没有任何输出的，开发者还以为“卡死”了，优化如下：

module.export = {
        plugins: [
            compiler => {
                console.log('Start compiling...')
                compiler.hooks.done.tap({ name: 'myPlugin' }, stats => {
                    const hasErrors = stats.hasErrors()
                    if (!hasErrors) {
                        console.log()
                        console.log(`  App running at:`)
                        console.log(`  - Local:   ${chalk.cyan(`http://localhost:8088`)}`)
                    }
                })
            }
        ],
}

另外，还可以使用成熟的解决方案，即friendly-errors-webpack-plugin (opens new window)。

const FriendlyErrorsPlugin = require('friendly-errors-webpack-plugin')

module.exports = env => {
    const devWebpackConfig = {
    }
    return new Promise((resolve, reject) => {
        console.log(`${chalk.bgBlue.black(' I ')} Start compiling...`)
        portfinder.basePort = config.dev.port || '8088'
        portfinder.getPort((err, port) => {
            if (err) {
                reject(err)
            } else {
                devWebpackConfig.devServer.port = port

                // Add FriendlyErrorsPlugin
                devWebpackConfig.plugins.push(
                    new FriendlyErrorsPlugin({
                        compilationSuccessInfo: {
                            messages: [`${new Date().toLocaleTimeString()} update`, `App running at: http://localhost:${port}`]
                        },
                        onErrors: config.dev.notifyOnErrors ? utils.createNotifierCallback() : undefined // 参考官方文档介绍
                    })
                )
                resolve(devWebpackConfig)
            }
        })
    })
}

总结

参考

webpack5官方迁移文档 (opens new window)
